Size Reduction Equipment

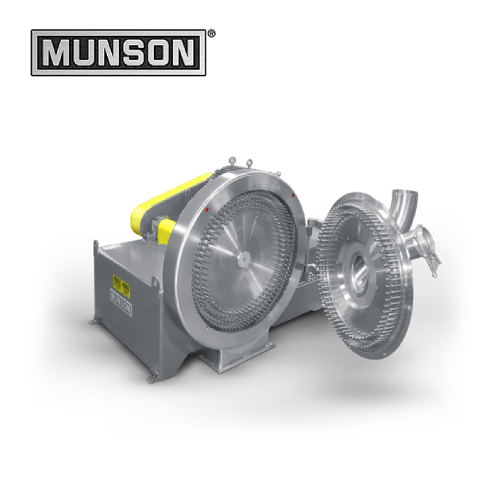

Pin Mills

  • Grinds Friable Materials to Narrow Size Ranges; De-Agglomerates Lumpy Materials.
  • Simple Design — Only One Moving Part Contacting Material.
  • Air-swept Principle of Operation Keeps Material Cool.
  • Easy to Clean and Sanitize.
  • Five Rows of Intermeshing Impact Pins.
  • Safety Interlocked Access Door/Stator Disc Hinges Open for Unrestricted Access to All Internal Material Contact Surfaces.
  • Vertical Orientation of Mill Housing Offers Easier Cleaning and Sanitizing than Horizontal Designs.
  • Precision Machined Housing and Discs.
  • Easy-flow Inlet Elbow.
  • Design Efficiency Produces High Throughput Rates Per Horsepower/Kilowatt.
  • 5 to 125 hp (4 to 93 kw) Inverter-Capable Motors.
  • Multiple V-Belt and Sheave Drive Arrangements. Direct Drive on CIM-18 Only.



    • Learn More

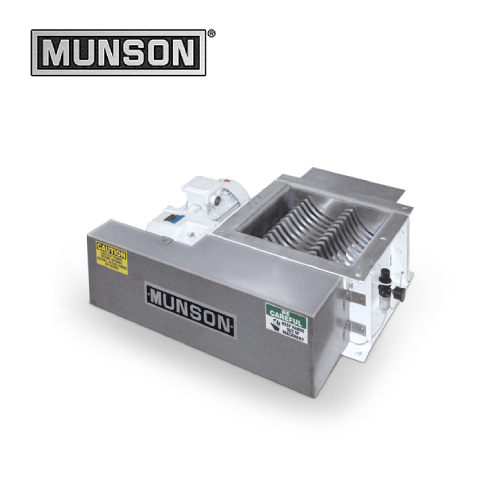

    Lump Breaker

  • Low Profile Construction.
  • Integral Housing and Drive
  • One-piece, Replaceable Lump-Breaking Weldment Constructed of AR-235 Abrasion Resistant Steel.
  • Classifying Bed Screens with Perforations From 1/32 in. (0.8 mm) in Diameter to 2-1/2 in. (64 mm) Square.
  • Capable of in-line or Stand-Alone Operation.
  • Rugged Design Withstands Heavy Use.
  • Low Maintenance Requirements.
  • UHMW Air Purge Block Seals.
  • Exceptionally Durable, Self-Lubricating Chain and Sprocket Drive.
  • External Access for Bearing Lubrication Eliminates Need to Remove Guarding for Routine Maintenance.
  • Matching inlet and Outlet Flanges.






    • Learn More

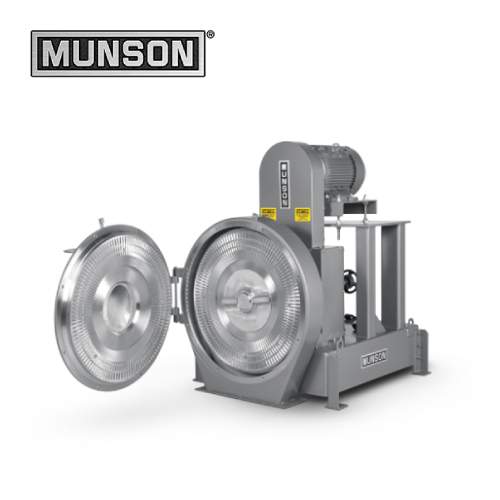

    Attrition Mills

  • Produces Particles Within Narrow Size Ranges From 10 to 100 Mesh.
  • High Throughput-to-Horsepower Ratio.
  • Rotating Disc and Shaft Assembly Supported by Radial and Thrust-Load-Rated Pillow Block Ball Bearings.
  • Adjustable Grinding Plate Spring Pressure Assures Product Uniformity.
  • Several Milling Disc Patterns Available to Optimize Size Reduction for Specific Material Types.
  • Quick-Release Separation of Discs Allows Mill to be Opened Without Need to Readjust Plate Gap.
  • Spring Loading Allows Runner Disc to be Forced Away from Stator Disc to Allow Passage of Hard Foreign Substances.
  • Access Doors Allow Easy Clean-out, Maintenance, Inspection.
  • Compact Overhead Motor-Mounted Drive with V-Belt Arrangement as Standard.
  • Fully Enclosed Drive Guards and Limit Switches for Operator Safety.



    • Learn More

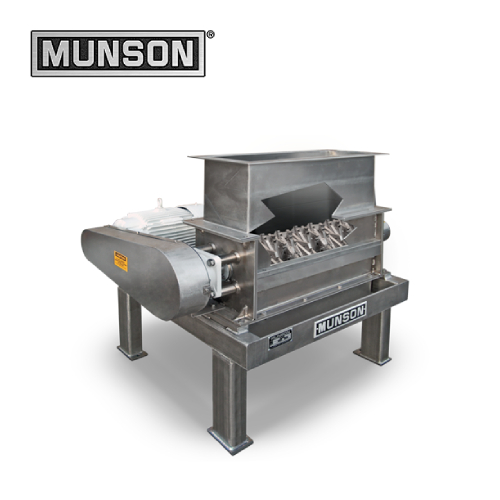

    Screen Classifying Cutters

  • Rapid Throughput with Minimal Fines or Heat Generation.
  • Advanced Helical Rotor Design with Interconnected Cutters.
  • Tungsten Carbide Replaceable Cutter Inserts.
  • Proprietary, Progressively Staggered Rotary Cutter Blade Design.
  • Heavy Gauge Bolted and Welded Carbon Steel Construction.
  • Helical Cutting Pattern Minimizes Retention Period and Takes Full Advantage of Screen Area.
  • Adjustable Bed Knives Secured to Solid Anvils to Prevent Movement.
  • Standard V-belt to Sheave Drive Arrangement.
  • Rotor Speed Operating Range From 30 to 3600 RPM, Depending on Application.
  • Bed Screens From 1/32 in. (0.79 mm) Round to 6 in. (152 mm) Square.



    • Learn More

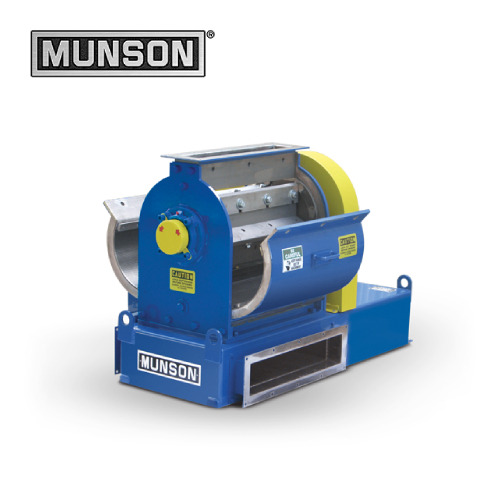

    Knife Cutters

  • Rapid Throughput with Minimal Fines or Heat Generation.
  • Advanced Helical Rotor Design with Interconnected Cutters.
  • Tungsten Carbide Replaceable Cutter Inserts.
  • Proprietary, Progressively Staggered Rotary Cutter Blade Design.
  • Heavy Gauge Bolted and Welded Carbon Steel Construction.
  • Helical Cutting Pattern Minimizes Retention Period and Takes Full Advantage of Screen Area.
  • Adjustable Bed Knives Secured to Solid Anvils to Prevent Movement.
  • Standard V-belt to Sheave Drive Arrangement.
  • Rotor Speed Operating Range From 30 to 3600 RPM, Depending on Application.
  • Bed Screens From 1/32 in. (0.79 mm) Round to 6 in. (152 mm) Square.



    • Learn More

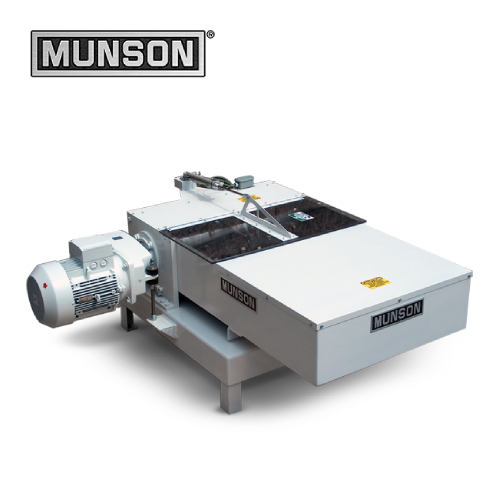

    Heavy Duty Cutters

  • Cutting, Ripping and Shearing Against Full-width Bed Knife.
  • Chamber Lengths of 12, 24 and 36 in. (305, 610 and 914 mm).
  • 12 in. (305 mm) Overall Diameter.
  • Solid, High-Inertia Rotor Mass with Replaceable, Progressively Stacked Cutter Inserts Secured by High-Tensile Machine Screws.
  • Cutter Inserts and Anvil-Supported, Adjustable Bed Knife of Proprietary Hardened Tool Steel.
  • Positive Rake-Angle Blade Design Increases Shearing Efficiency.
  • Bed Screens From 1/16 in. (1.6 mm) Round to 6 in. (152 mm) Square.
  • Gravity Feed System.
  • V-belt to Sheave Drive Arrangement.
  • Fully Enclosed Drive Guards.
  • Common Support Base for Cutter Housing and Drive Components.


    • Learn More

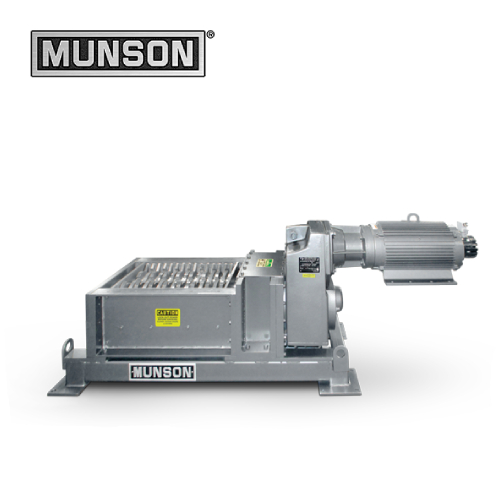

    Titan Shredders

  • Shreds a Diversity of Waste and Scrap Products into Strips 1.5 x 6 in. (38 x 152 mm) or Smaller.
  • Low-speed, High Torque Operation Shreds Problematic Materials with Little or no Temperature Increase.
  • Positive Shearing/Shredding Action Minimizes Product Binding or Plugging.
  • Smart Controls (Start/Stop/Auto-Reverse and Shutoff).
  • Dual Rotor Design with Rugged, Extended Cutter Teeth that Shear and Shred Large Solids While Self-Cleaning with Each Rotation.
  • Hex-Shaped, Heat-Treated Parallel Shafts are Stronger and More Fatigue Resistant than Traditional Keyed Bar Shafts.
  • Handles Heavy Volumes of Through-put with Minimal Power Consumption.
  • Proprietary Hardened Steel Cutter Heads are Heat-Treated and Through-Hardened, Yet Still Allow Re-Sharpening of Cutter Tips.
  • Isolated Bearings and Gearing with Multiple Labyrinth and Lip Seal Design Prevent Damage to Critical Bearing Areas.


    • Learn More

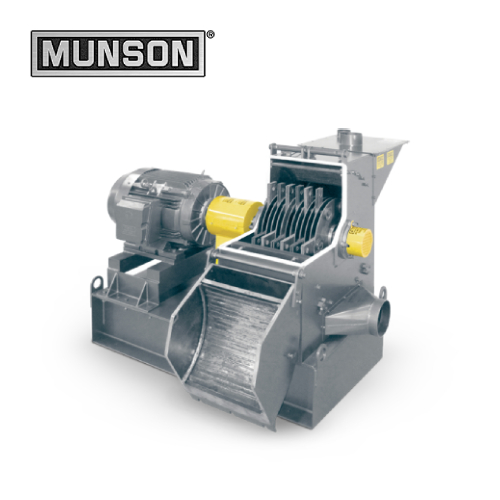

    Hammer Mills

  • Large, Obstruction-Free Product Feed Opening.
  • Peripheral Hammer Velocity from 3,600 to 24,000 ft/min (1,100 to 7,300 m/min) Together with Hard-Faced Breaker Plates and Perforated Bed Screen, Reduces Wide Range of Material Types and Sizes at High Rates.
  • Greater Output Per Horsepower/Kilowatt than Many Other Types of Mills.
  • Hardened steel hammers with "stepped ends" offer three-times the cutting edges of square-end hammers.
  • Four-way reversible design allows all stepped hammer corners to be utilized prior to replacing.
  • Radiused bed screens with perforations from 1/32 to 3 in. (0.8 to 76 mm).
  • Lower transition for pneumatic removal of reduced materials.
  • Hinged mill case door provides unobstructed interior access for rapid inspection and changing of breaker plates, screens and hammers.
  • Machined mating surfaces of door and mill case provide dust-tight operation.
  • Directly-coupled drive


    • Learn More
